Example for using the plugin spring

On this side are some examples of the use spring plugins arranged. All examples presented here are downloadable in each case example projects, in order to be reconstructed them, be deleted however in each case with the appropriate spring the actionhierachie of the bones (!!). Still another in each case picture with the adjusted parameters is attached to the example projects. Who cannot the example projects render, can download itself also the example films. If the example films should not be with you playable (due to the variable bit rate) please I around short notification, then I will place also the films with constant bit rate again to online.

Name

Parameter

MPEG-1 Film
(320x240, 25 FPS, variable Bitrate)

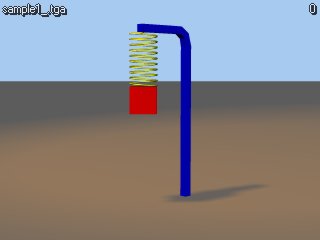

Sample1

Stretching the spring with attached model at bottom

weight	1.25kg
weight deflection	4.9cm
spring constant	250N/m
damping constant	2.6
extra deflection	10cm
weight deflection consider	on
attached model at	bottom
begin at	5
end at
Stop at endtime	off
all springs same parameter	off
spring select

Sample1 Film
550 kb

Sample2

Ramming the spring with model attached at top

weight	1.5kg
weight deflection	7.35cm
spring constant	200N/m
damping constant	2
extra deflection	-5cm
weight deflection consider	off
attached model at	top
begin at
end at	200
Stop at endtime	on
all springs same parameter	off
spring select

Sample2 Film
520 kb

Sample3

model with 4 springs, who have difficultly parameters

weight	1.25kg
weight deflection	-2cm
spring constant	250N/m
damping constant	2
extra deflection	-5cm
weight deflection consider	on
attached model at	top
begin at
end at
Stop at endtime	off
all springs same parameter	off
spring select	FMaster_1

weight	1
weight deflection	-2.5cm
spring constant	392.266N/m
damping constant	1.5
extra deflection	-7.5cm
weight deflection consider	on
attached model at	top
begin at
end at
Stop at endtime	off
all springs same parameter	off
spring select	FMaster_2

weight	5kg
weight deflection	9.81cm
spring constant	500N/m
damping constant	7.5
extra deflection	-10cm
weight deflection consider	on
attached model at	top
begin at
end at
Stop at endtime	off
all springs same parameter	off
spring select	FMaster_3

weight	5kg
weight deflection	-2cm
spring constant	2451.6625N/m
damping constant	7
extra deflection	-10cm
weight deflection consider	on
attached model at	top
begin at
end at
Stop at endtime	off
all springs same parameter	off
spring select	FMaster_4

Sample3 Film
830 kb

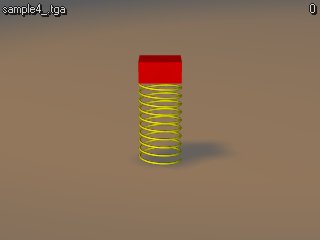

Sample4

No damping

weight	0.5kg
weight deflection	-5cm
spring constant	98.0665
damping constant	0
extra deflection	0
weight deflection consider	on
attached model at	top
begin at	5
end at	200
Stop at endtime	on
all springs same parameter	off
spring select

Sample4 Film
690 kb

Sample5

Example for a non spring model, where the plugin two times run

weight	1kg
weight deflection	-5cm
spring constant	196.133N/m
damping constant	1
extra deflection	-10cm
weight deflection consider	on
attached model at	top
begin at	6
end at	200
Stop at endtime	on
all springs same parameter	off
spring select

weight	1
weight deflection	-5cm
spring constant	196.133N/m
damping constant	1
extra deflection	-5cm
weight deflection consider	off
attached model at	top
begin at	150
end at	300
Stop at endtime	on
all springs same parameter	off
spring select

Sample5 Film
540 kb

Sample6

Example for another non spring model

weight	1kg
weight deflection	-5cm
spring constant	196.133N/m
damping constant	1
extra deflection	-5cm
weight deflection consider	off
attached model at	top
begin at
end at	200
Stop at endtime	on
all springs same parameter	off
spring select

Sample6 Film
390 kb

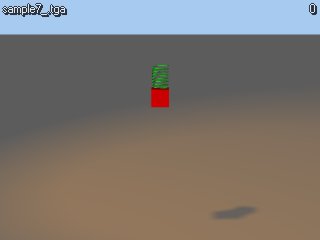

Sample7

Example for bouncing (weight deflection greater then maximum)
maximum in this example 9.5 cm

weight	2kg
weight deflection	20cm
spring constant	98.0665N/m
damping constant	1
extra deflection	0
weight deflection consider	on
attached model at	bottom
begin at	10
end at	200
Stop at endtime	on
all springs same parameter	off
spring select

Sample7 Film
470 kb
